Name: Duct Temperature Sensors - TDSH SERIES
SKU: DTS-TDSH
Price: 1990.00 THB
Availability: InStock

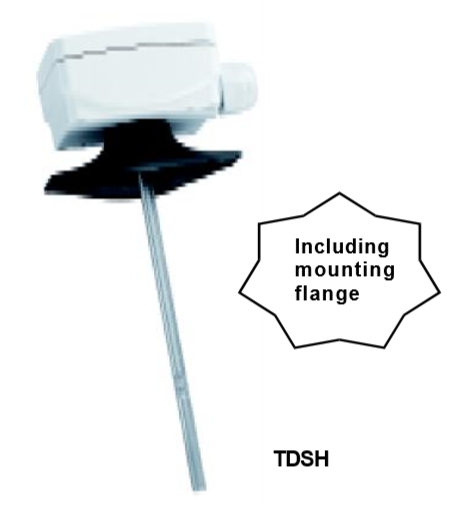

Duct Temperature Sensors – TDSH SERIES

1,990.00฿

PART NUMBER & PRICE

Type no.	Description
TDSH NTC 10K xxx	Duct temperature sensor
TDSH NTC 1.8K xxx	Duct temperature sensor
TDSH NTC 20Kxxx	Duct temperature sensor
TDSH KTY 2K xxx	Duct temperature sensor
TDSH PT100 xxx	Duct temperature sensor
TDSH PT1000 xxx	Duct temperature sensor
TDSH NI1000 xxx	Duct temperature sensor
xxx = probe length in mm; 50, 100, 150, 200, 250, 300 or 400.
Order example: Type number for duct temperature sensor PT1000 with 150 mm probe length will be TDSH PT1000 150.

SPECIFICATION

Measuring range	-30 to +150°C
Sensing elements	See ordering (other elements on request)
Connections	2-wire (on request 3 and 4-wire)
Probe material	Steel
Probe diameter	6 mm
Probe length	50, 100, 150, 200, 250, 300 or 400 mm
Housing material	Plastic
Housing dimensions	72x64x39 mm excluding cable entry gland
Protection	IP 65
Mounting	With supplied (attached) flange
Isolation resistance	> 100Mohm, at 20°C (500 Vdc)
