CO DUCT & WALL – COW SERIES

1,990.00฿

Clear
SKU: CDW-COW Category: Tags: , ,

PART NUMBER & PRICE

Type no. Description

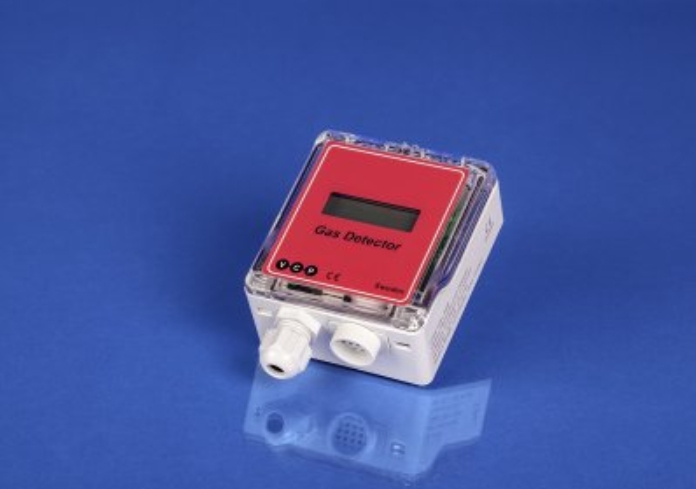

COW 13F0 Carbon Monoxide (CO) detector

  • for wall mounting, IP65 enclosure and IP41 probe
  • Range 0-100 ppm or 300 ppm, jumper selectable range
  • 1 field selectable output 0-10Vdc or 4-20mA
COW 1351 MDR Carbon Monoxide (CO) detector

  • for wall mounting, IP65 enclosure and IP41 probe
  • Range 0-100 ppm or 0-300 ppm, jumper selectable range
  • Two Outputs 4-20 mA and 0-10 Vdc
  • Modbus RS485 communication
  • LCD Display 12×2
  • Relay output, user can set any level

SPECIFICATION

Electrical Power Supply

Power Consumption

 24 Vac (± %5), 50-60 Hz
 14-35 Vdc< 2.5 W
Outputs
  • Current Output
  • Voltage Output
  • 4-20 mA, maximum 500 Ω
  • 0-10 Vdc, minimum 1.000 Ω
  • 0-5 Vdc, minimum 1.000 Ω
  • max. rating 1A @ 220 Vac accuracy
CO
  • ±2 % for 0-100 ppm
  • ±3 % for 0-300 ppm
  • ±5 % for 0-1000 ppm (on request)
General Data
  • Sensing Element
  • Sensor life time
  • Media
  • Operating Temperature
  • Storage Temperature
  • MEMS electrochemical
  • min. 10 years
  • Air or non-aggressive gasses
  • -25 to +70°C
  • -30 to +85°C
Ranges CO 0-100 ppm or 0-300 ppm on request 0-1000 ppm
Connections
  • Terminal
  • Cable
  • Cable Gland
  • Pluggable screw terminal
  • maximum 1.5mm2
  • M16 or PG9
Protection
  • Enclosure
  • Probe
  • IP65 or NEMA 4
  • IP41 or NEMA 3
Standards
  • EMC Directive
  • CE Conformity
  • EN 61326-1
  • CE1701
Dimensions
  • Enclosure
  • Probe
  • 98.0 x 81.5 x 45.5 mm
  • ∅ 12 mm x 46.5 mm
Weight Packed 230 grams
Universal input(s) Can be 0-10 Vdc, 0-5Vdc, PT1000 (only on request).
Sensing Coverage area 400 m2

DOCUMENTS
