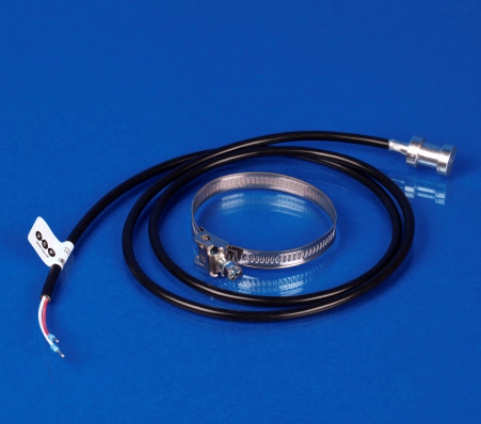

Strap-on Temperature Sensor – TSC

SPECIFICATION

• Standard sensing elements
– Thermistor NTC 10K
– Platinum PT1000
• Tolerances at 25°C
NTC 10K: +/- 0.22°C
PT1000: +/- 0.42°C
– Other sensing elements on request
NTC 1.8K, NTC 5K, NTC 20K,
Precon, KTY81-110, KTY81-210, LM235Z
NI1000, NI1000/5000, PT1000.
• 1 meter PVC cable, other lenghts on request
• Included 220 mm adjustable strap-on band,
for pipe diameter 32 to 50 mm .
• IP 54 protection
• Simple 2-wire connection
3-wire and 4-wire on request
• Economical way to measure temperature
• Directive 2014/30/EU
DIN EN 61326-2-1:2013
