1,990.00฿
| Type no. | Description |
| TOSS PT100 | Outdoor temperature sensor |
| TOSS PT1000 | Outdoor temperature sensor |
| TOSS NI1000 | Outdoor temperature sensor |
| TOSS NTC 1.8K | Outdoor temperature sensor |
| TOSS NTC 10K | Outdoor temperature sensor |
| TOSS NTC 20K | Outdoor temperature sensor |
| TOSS KTY 2K | Outdoor temperature sensor |

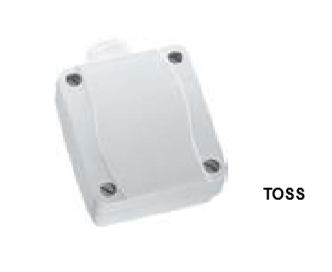

| Outdoor Temperature Sensors with Passive Sensing Element (TOSS) | |
| Measuring range |
-50 to +90°C |
| Sensing elements |
See ordering (other elements on request) |
| Isolation resistance |
> 100Mohm, at 20°C (500 Vdc) |
| Connections | 2-wire (on request 3 and 4-wire) |
| Housing material |
Plastic |
| Housing dimensions |
72x64x39 mm excluding cable entry gland |
| Protection | IP 65 |
