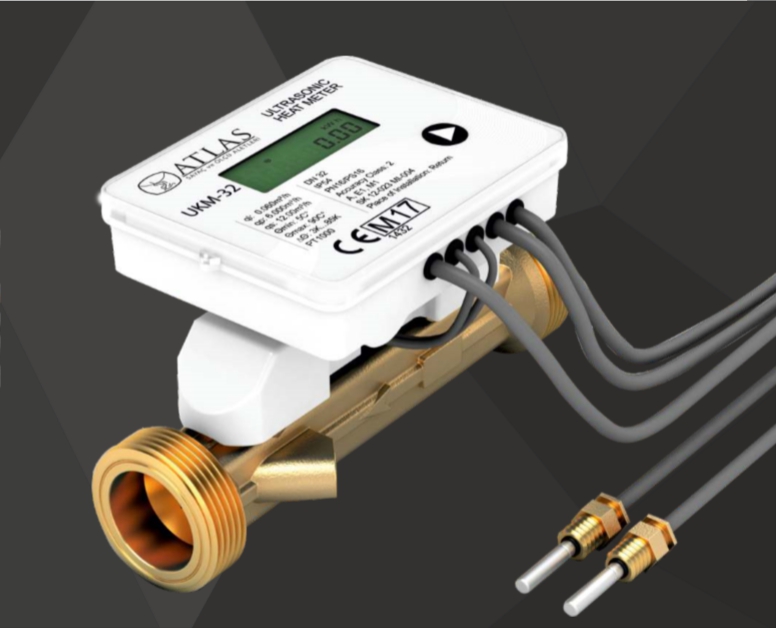

ULTRASONIC HEAT METER – UKM32

1,990.00฿

SKU: UKM32 Category: Tags: , ,

PART NUMBER & PRICE

SPECIFICATION

Ultrasonic Flow Meter:
– Accurate measurement at low ow rates
– Flow metering range:
Minimum Flow (qi) : 0,06 m³/h
Nominal Flow(qp) : 6,00m³ /h
Maximum Flow (qs) : 12,00m³ /h

Thermal sensor pair that is capable of linear measurement
– The minimum temperature difference(Δt) that the calculation starts is 0,1°C
– Fast reacting Platinum Thermal sensor pair is used.
– The Measurement temperature range is between 5o C and 90 °C

Metrological Options
– Produced according to the standards of TS EN 1434
– The accuracy class is 2 ( Class 2)
– Protection Class is IP65
– Maxiumum pressure can be applied to (MAP) is 16 bar.

Communication Interfaces:
– The Wired communication has Standard M-Bus interface
– RF communication uses wireless M-Bus interface.
– Produced according to the 2014/32/EU MID ( Measurement Instrument Directives)



DOCUMENTS

DN32
