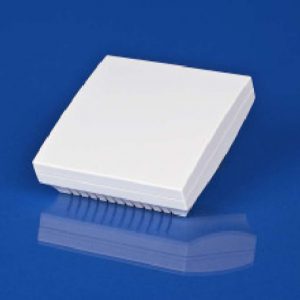

Outdoor Temperature Sensors TOC

SPECIFICATION

• Standard sensing elements
  • Thermistor NTC 10K
  • Platinum PT1000
• Tolerances at 25°C
  • NTC 10K: +/- 0.22°C
  • PT1000: +/- 0.42°C
• Other sensing elements on request
  • NTC 1.8K, NTC 5K, NTC 20K,
  • Precon, KTY81-110, KTY81-210, LM235Z
  • NI1000, NI1000/5000, PT1000.
• Housing material plastic with IP65 protection
• Housing dimensions 75x69x44 mm
  excluding cable entry gland
• Cable entry gland M16x1.5 for cable diameter 4 to 10 mm
• 4 quick locking screws in the cover of the enclosure
• Screw clamp connection max 1.5 mm
• Simple 2-wire connection
  3-wire and 4-wire on request
• Economical way to measure temperature
• Directive 2014/30/EU
• DIN EN 61326-2-1:2013
